Products

In order to offer our services, we have developed a number of products adapted to tough requirements. We are also continuously working to develop more innovative products. Read more about the products that make our services so good.

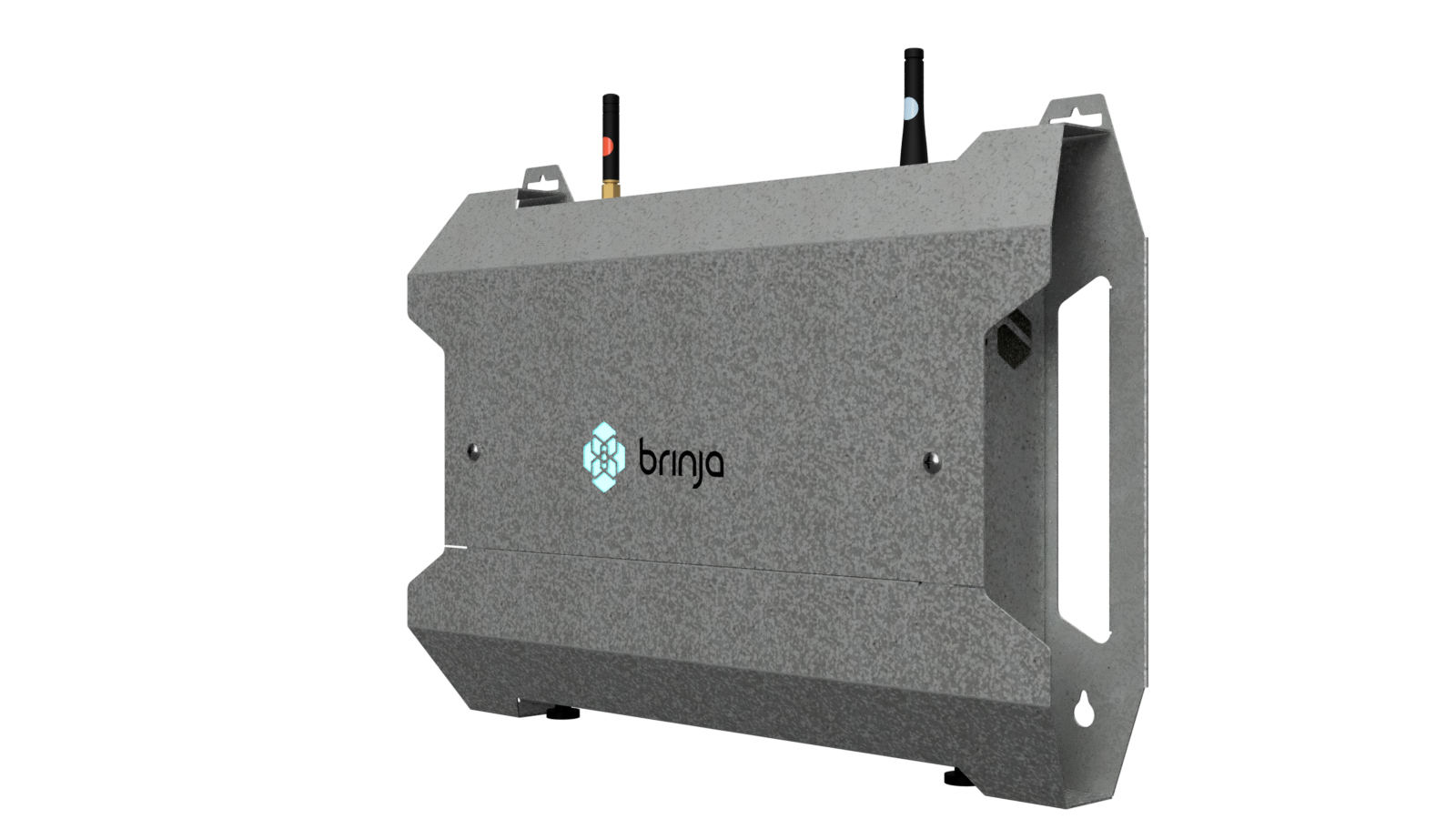

Brinja Core

Equipped with both GSM and low frequency radio, Brinja Core is perfectly suited for IoT challenges in harsh environments with a lot of concrete. The durable construction in galvanized sheet metal provides good protection against the stresses of the construction site.

Brinja Core Specs

Certifications
According to EU directives, including CE, RED, LVD, RoHS &EMC
Variants
Core48 & Core230
Size
385x295x62 mm
Weight
About 3kg
Chassis
Durable galvanized sheet metal
Channels
Up to 9 channels for Core48 or 1 for Core230
Output power
48 VAC for Core48 and 230 VAC for Core230
Max combined load
3000W for Core48 and 1800W for Core230
Power supply
110-230 VAC, 50-60 Hz
Siren
123 dB @ 10 cm
Light signal
RGB Led to signal status
Suspension
4 Screw holes, m3-m6 or 2x tension/cable ties

Brinja Node

The sleek design makes Brinja Node durable and easy to install. The devices are wireless and battery powered with sufficient capacity to withstand a longer construction project. Once assembled, they can serve the entire project without service.

Specifications Brinja Node

Size
180x130x47mm
Weight
0.6 kg
Power supply
Battery operation, 3x C-type Alkaline
Collection rate
Flexible but standard every 15 minutes

Sensors

Readings

Humidity
Relative humidity (RH)
Temperature
Air temperature in °C
Noise
Sound level in dB
Dust
Concentration in μg/m³
Gas
Carbon monoxide, particles in ppm
Movement
Activity/h or movement
Vibration
Frequency in Hz
Air Pressure
Atmospheric air pressure in hPa

Brinja App

Through the app, all our services are managed, such as evacuation and quality measurement. It's easy to browse between the different services and if something happens on site, you'll receive a notification in the app in real time. Employment is easily done with QR codes that ensures everyone has access to the right features.
